Scope

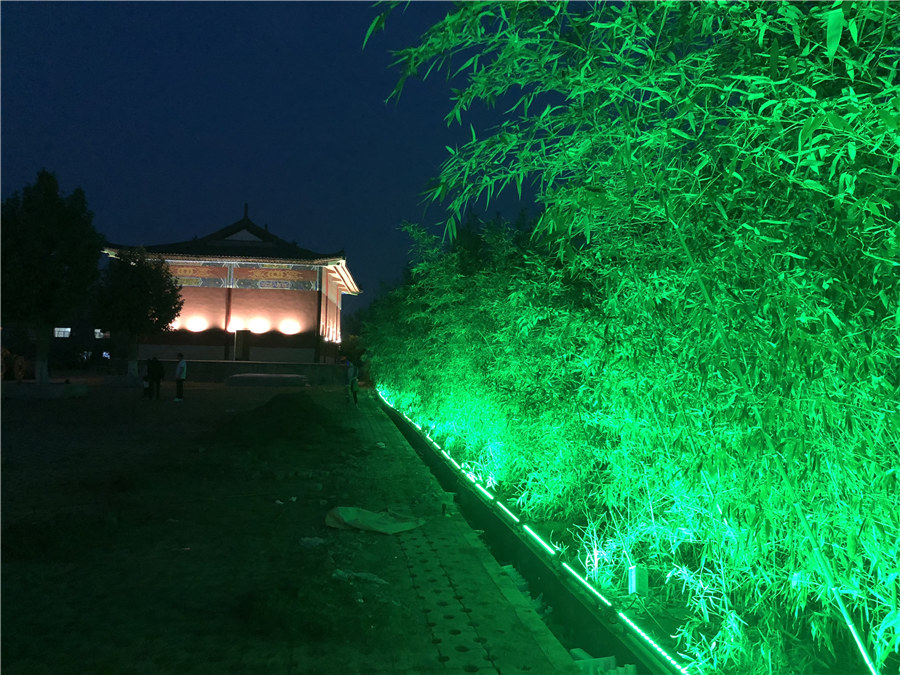

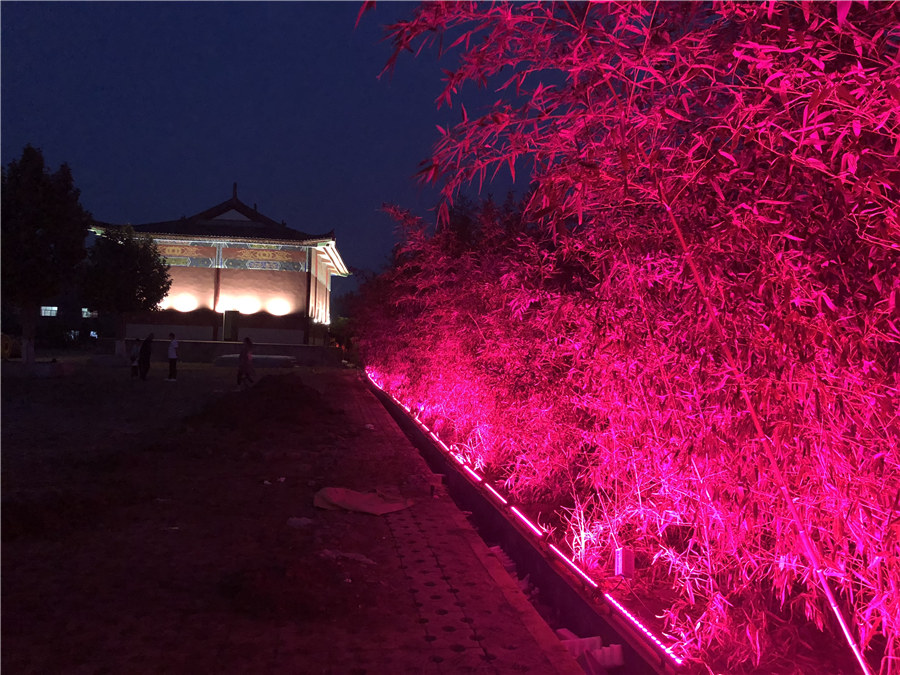

landscape lighting, bridge, building lighting, advertising license out, hotels, cultural facilities, and professional lighting square, bars discos and other Places of entertainment and architecture lighting.
Specifications
Material: Aluminum radiator + tempered glass/aluminum radiator + anti-glare mask
Light Source:CREE /OSRAM /PHILIPS
Dimension:L300/500/1000mm*W25mm*H23mm
Input Voltage:DC10V/DC24V/DC36V/DC48V
LED封装:CREE 3535/5050,欧司朗3535/5050
LED quantity: 48pcs
Total power: 9.6W/12W/15W
Color: RGB RGBW R/G/B/Y/W
Beam Angle:10*30°10*45°10*60°
Lighting Protection ESD:IEC61000-4(level4)
ProtectingGrade:IP65/IP66
Electrical safety level:I
Working temperature:-40~55℃
Life:50000H
Size:
Profile name | Release date | - | |
---|---|---|---|
• 洗墙灯012规格书specification | 2019-06-05 | - | Download |
