Design Characteristic
This led underwater lamp design basis on safety and character of underwater project.The protecton grade is IP68, the lamp is adopted professional waterproof connector,easy to insatallation.
Features：
Wide working voltage range: DC12V-DC24V, Save 40% power with more efficient. DC to DC power management design
Scope:
landscape lighting, bridge, building lighting, advertising license out, hotels, cultural facilities, and professional lighting square, bars discos and other Places of entertainment and architecture lighting.
Specifications
| Model | FTFX-SDD-005 | FTFX-SDD-006 |
| Material |
Stainless steel housing, toughened glass |
|

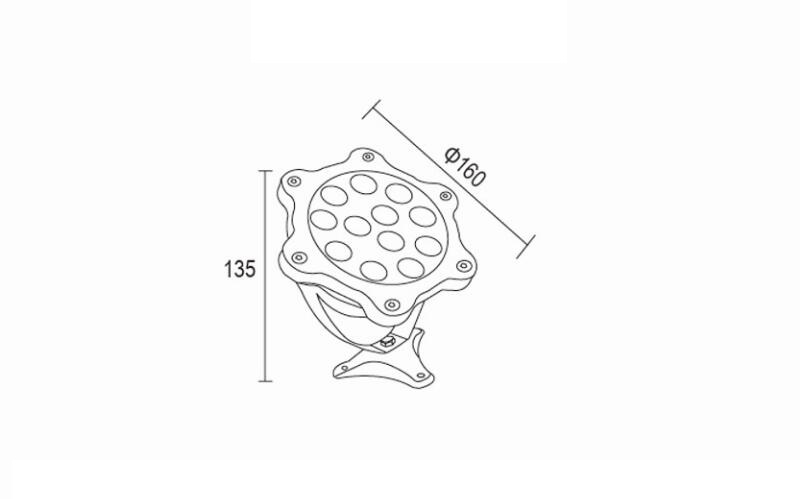

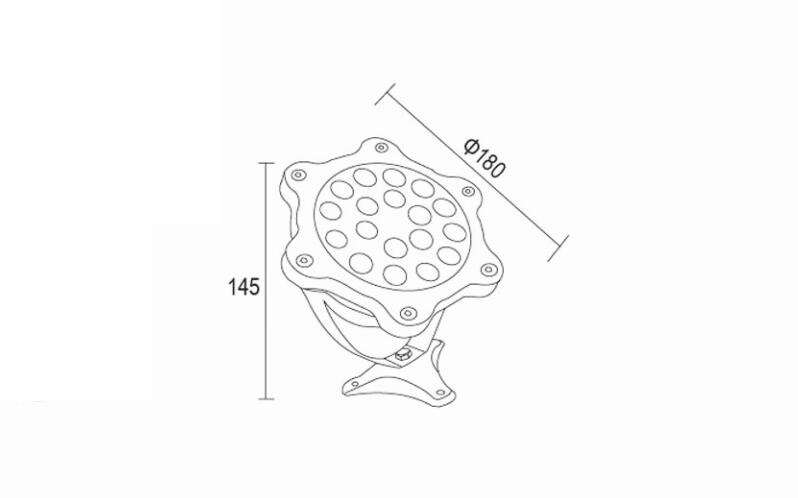

| Size(mm) | θ160*H135mm | θ180*H145mm |
| Voltage(V) | AC12V/24V | |
| Power(W) | 12W | 18W |
| LED QTY | 12pcs | 18pcs |
| Color Temperature(K) | 2000/3000/6000/RGB | |
| LED Type LED | Philip/Osram/Epistar/Cree | |
| Beam Angle | 30°/45°/60° optional | |
| Working Temperature(℃) | -25℃+45℃ | |
| Lamp Life(H) | >20000H | |
| Lamp Efficiency | >90% | |
| IP Rating | IP68 | |
| Control Mode | Single color constantly on/DMX512 | |
| Profile name | Release date | - |
|---|
