Design Inspiration:
This lamp designing refer to iron art at central Europe and moden industria style, and two became one. For better prominent of appearance heat sink line, the main body adopt simple cyilnder, at the same time make appearance more artistic.
Scope:

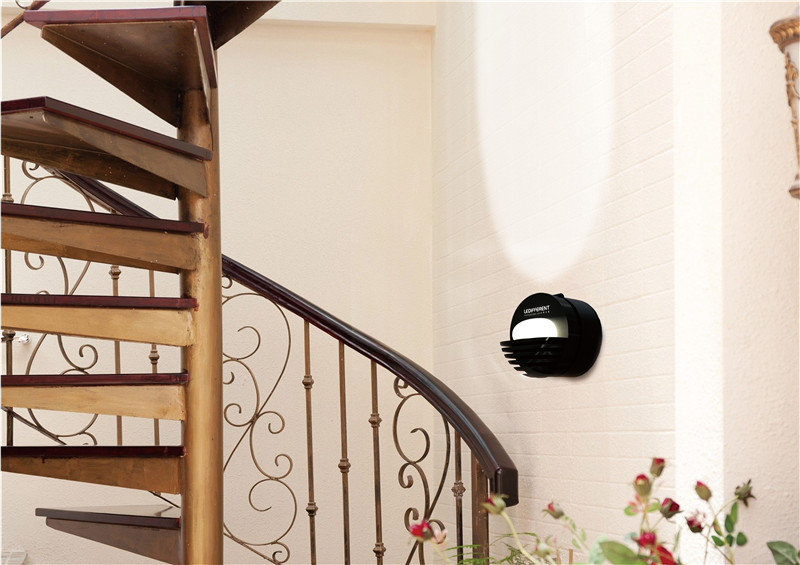

landscape, bridge, building decoration, hotels, cultural facilities, and square, bars discos and other places of entertainment decoration.
Specification
Model | FTFX-DXD-001-1 | FTFX-DXD-001-2 |
Profile Material | Iron Gray Aluminum |
Iron Gray Aluminum |
Light Source | CREE |
CREE |

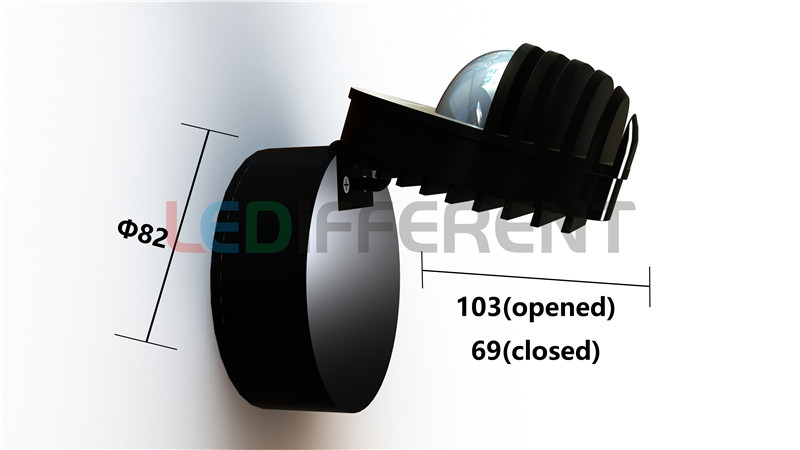

Dimension | Φ82*H103mm |
Φ82*H103mm |
Input Voltage | DC24V | AC90V-260V |
Current | 350mA |
350mA |
LED quantity | 3pcs | 3pcs |
Power | 6W-18W | 6W-18W |
Color | RGB/W/WW |
R/G/B/Y/W/Royal blue/Jacinth/Amber |
Protocol | DMX512 | (Constantly on) |
Beam Angle | 120° |
120° |
Working Temperature |
-40~55℃ |
-40~55℃ |
IP Grade | IP67 | IP67 |
Warranty | 30000H-50000H |
30000H-50000H |
Certificate | CE, Rohs | CE, Rohs |
Profile name | Release date | - |
---|
