Design Characteristic
This led underwater lamp design basis on safety and character of underwater project.The protecton grade is IP68, the lamp is adopted professional waterproof connector,easy to insatallation.
Features：
Wide working voltage range: DC12V-DC24V, Save 40% power with more efficient. DC to DC power management design
Scope:

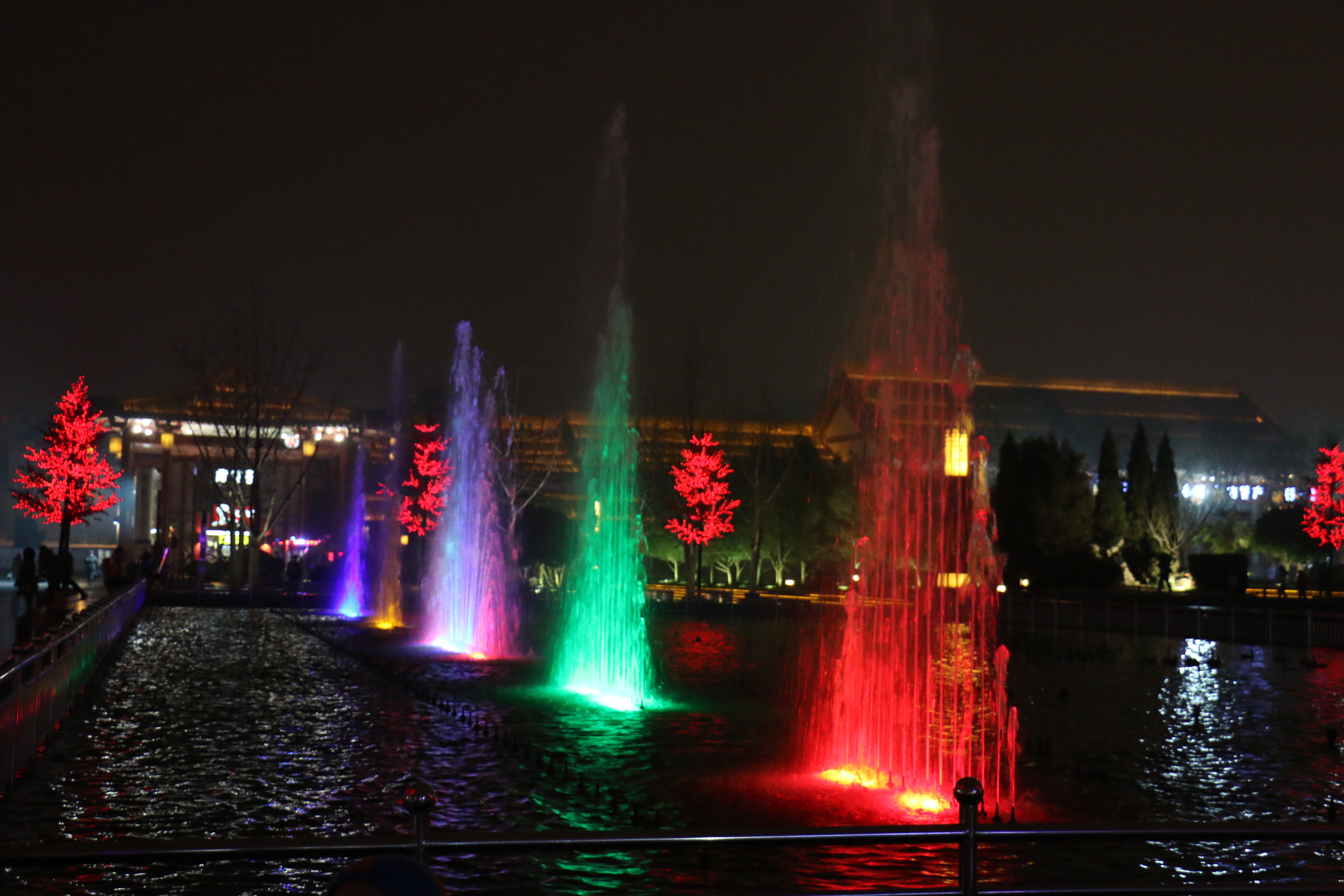

landscape lighting, bridge, building lighting, advertising license out, hotels, cultural facilities, and professional lighting square, bars discos and other Places of entertainment and architecture lighting.
Specifications
|
Stainless steel body, thick tempered glass, 304 stainless steel screw |
|||
| Led Brand：Cree/Epistar | |||
| Single Led Power：1W | |||
| Input Voltage：DC24V | |||
| Color：Single Color/RGB DMX 512 | |||
| IP Grade：IP68 | |||
| Working Temperature：-25℃ - +45℃ | |||
| Lifespan：20000H | |||
| Model | FTFX-SDD-009 | FTFX-SDD-010 | FTFX-SDD-011 |
| Size | θ130*H80mm | θ160*H85mm | θ180*H65mm |
| Voltage | DC24V | DC24V | DC24V |
| Power | 6W | 9W | 12W |
| Color | RGB/W | RGB/W | RGB/W |
| LED QTY | 6pcs | 9pcs | 12pcs |
Light Distribution
