Design Characteristic

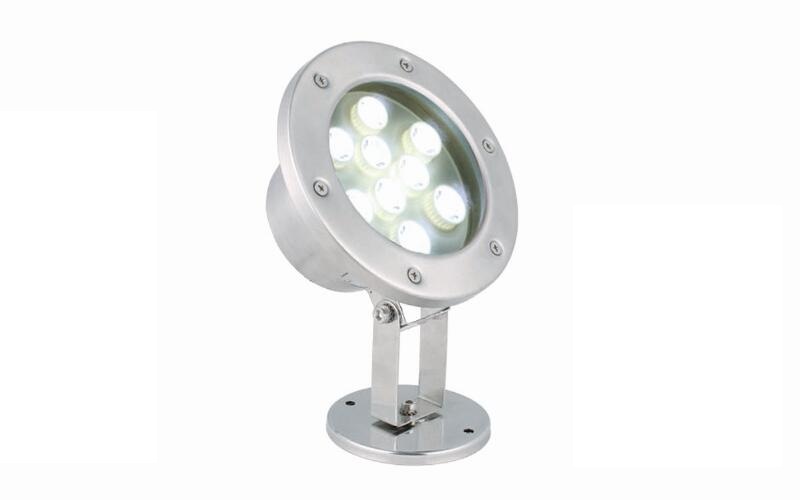

This led underwater lamp design basis on safety and character of underwater project.The protecton grade is IP68, the lamp is adopted professional waterproof connector,easy to insatallation.
Features：
Wide working voltage range: DC12V-DC24V, Save 40% power with more efficient. DC to DC power management design
Scope:

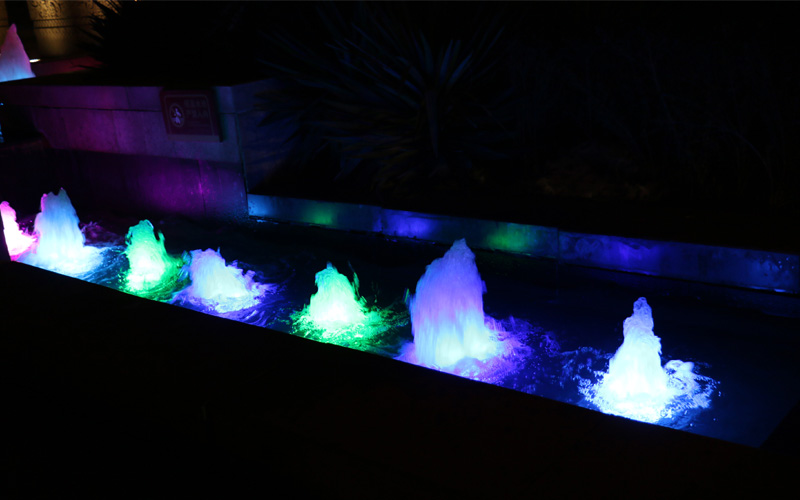

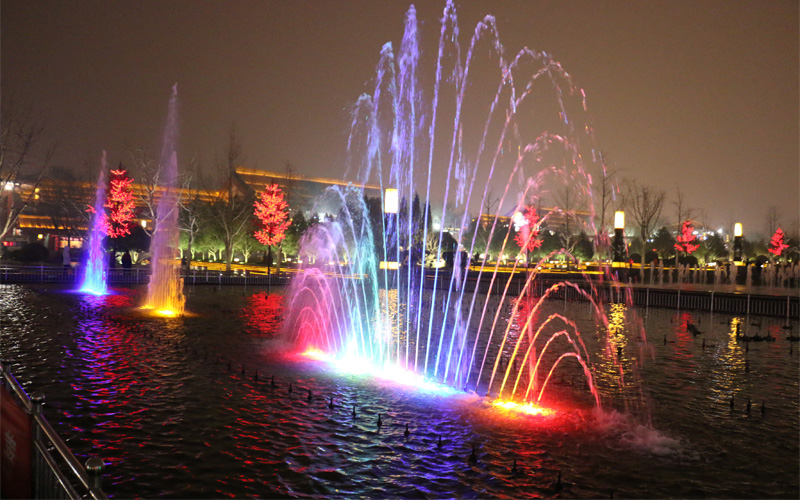

landscape lighting, bridge, building lighting, advertising license out, hotels, cultural facilities, and professional lighting square, bars discos and other Places of entertainment and architecture lighting.
Specifications
| Model | FTFX-SDD-001 | FTFX-SDD-002 |
| Material |
Stainless steel housing, toughened glass |
|
| Size(mm) | θ80*H130 | θ155*H210 |
| Voltage(V) | AC12V/24V | |
| Power(W) | 3W | 9W |
| LED QTY | 3pcs | 9pcs |
| Color Temperature(K) | 2000/3000/6000/RGB | |
| LED Type LED | Philip/Osram/Epistar/Cree | |
| Beam Angle | 30°/45°/60° optional | |
| Working Temperature(℃) | -25℃+45℃ | |
| Lamp Life(H) | >20000H | |
| Lamp Efficiency | >90% | |
| IP Rating | IP68 | |
| Control Mode | Single color constantly on/DMX512 | |
Size

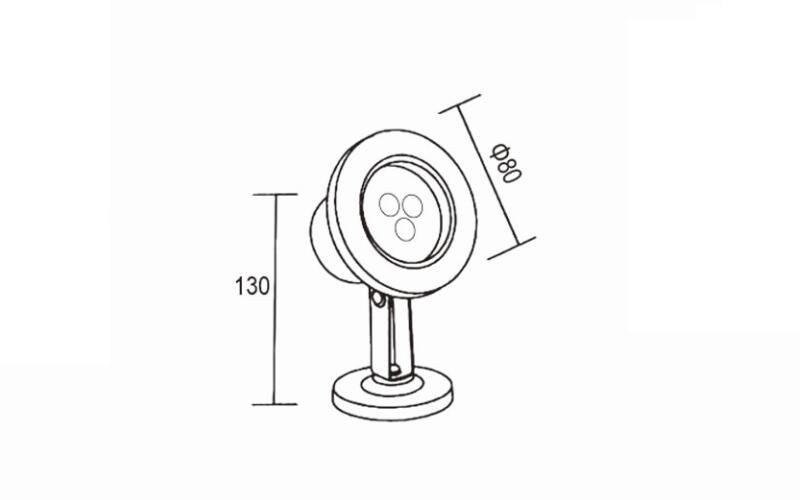

FTFX-SDD-001

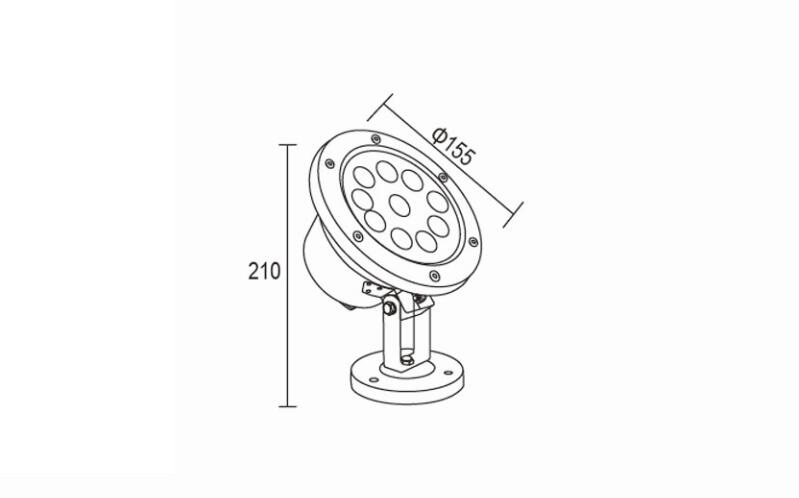

FTFX-SDD-002
Light Distribution
