Design Characteristic

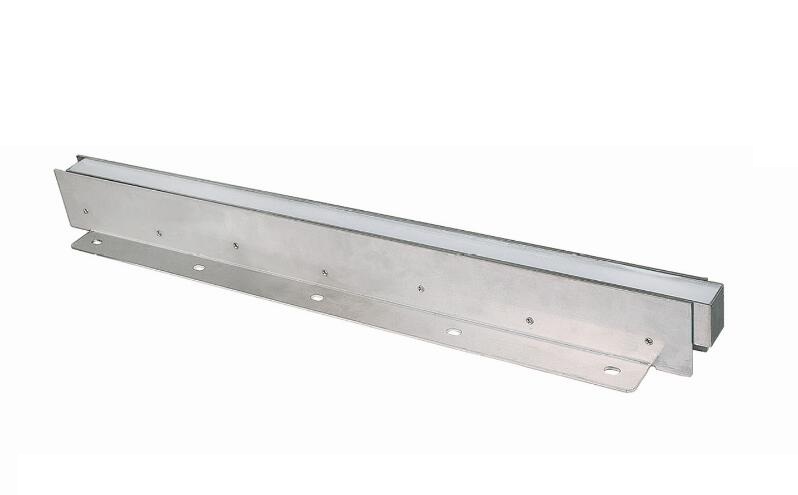

This led ground lamp is designing base on ground assist illumination.The lamp is made by die-casting aluminum with stainless steel panel and tempered glass,good weight capacity. Waterproof structure,dampproof and dustproof.The lamp with embedded part are easy for installation and maintenance
Features:
Wide working voltage range: DC12V-DC24V, Save 40% power with more efficient. DC to DC power management design
Scope:

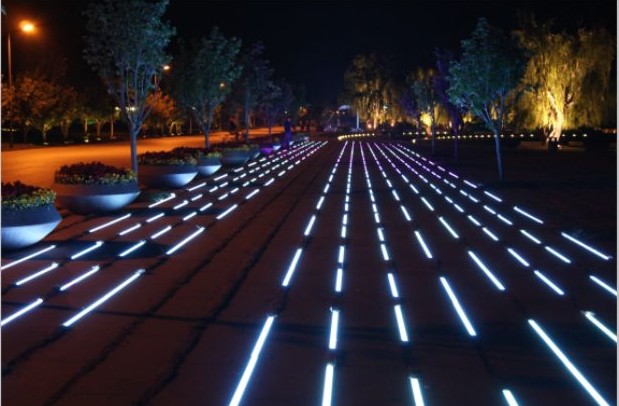

Shopping plaza,exhibition center, parking lot, stadium, tennis playground, gymnasia, billboard, statue, lighting engineering project,etc.
Specifications
Model | FTFX-MDD-031 |
Material |
Stainless steel cover, epoxy potting compund |
Size(mm) | L800*W47*H80 |
Voltage(V) | DC24V/AC220V |
Power(W) | 10W |
Color Temperature(K) | 2000/3000/6000/RGB |
LED Type LED | Philip/Osram/Epistar/Cree |
Beam Angle | 120° |
Working Temperature(℃) | -25℃+45℃ |
Lamp Life(H) | >20000H |
Lamp Efficiency | >90% |
IP Rating | IP67 |
Control Mode | Single color constantly on/DMX512 |
Profile name | Release date | - |
---|
