Design Characteristic：
Simple style, elegant outlook, waterproof structure.
Scope:
landscape lighting, bridge, building lighting, advertising license out, hotels, cultural facilities, and professional lighting square, bars discos and other Places of entertainment and architecture lighting.
Specifications
| Model | FTFX-XTD-003 |
| Material |
Aluminum, polyester powder spraying painted surface,4mm Glass cover |
| Size | 1000*W30*H36mm |
| Voltage | DC24V |
| Power | 10W/12W/18W |
| LED QTY | 18pcs/48pcs/60pcs |
| Luminous Efficiency | >125LM/W |
| Color Temperature(K) | 2000/3000/6000/RGB |
| LED Type LED | Philip/Osram/Epistar |
| Power Factor(PF) | >0.95 |
| Working Temperature(℃) | -25℃+45℃ |
| Lamp Life(H) | >20000H |
| Lamp Efficiency | >90% |
| IP Rating | IP65 |
| Control Mode |
DMX512/Constantly on |

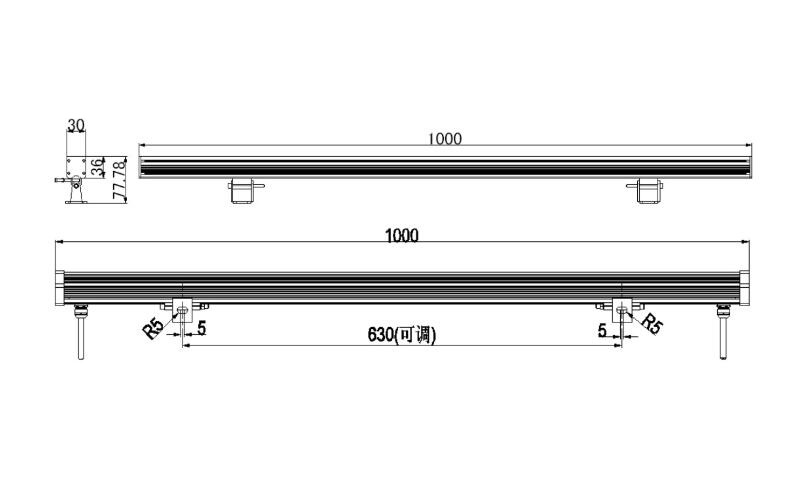

Size
Light Distribution Curve
