1. With Stepper Motor Kinetic System in the top tray, the speed and location of each ball can be controlled and different moving matrixs can be created.
2. The overall effect can be controlled wirelessly by wireless controller.
3. The battery inside the ball can be charged wirelessly. 4~5 hrs. working time.
4. Full color LED display.

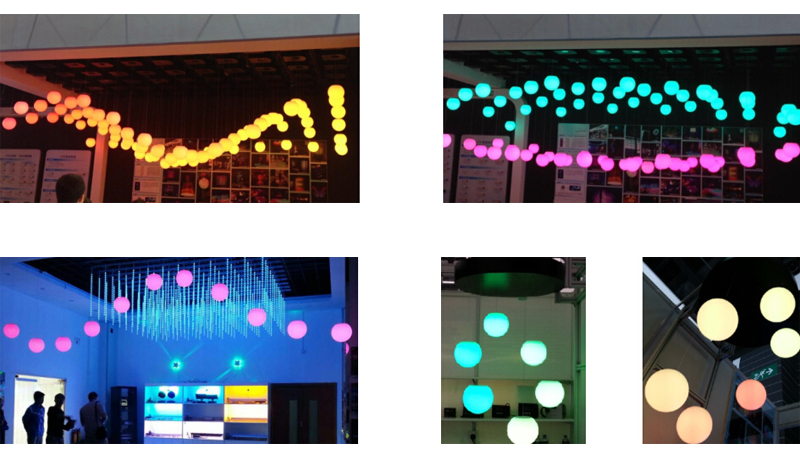

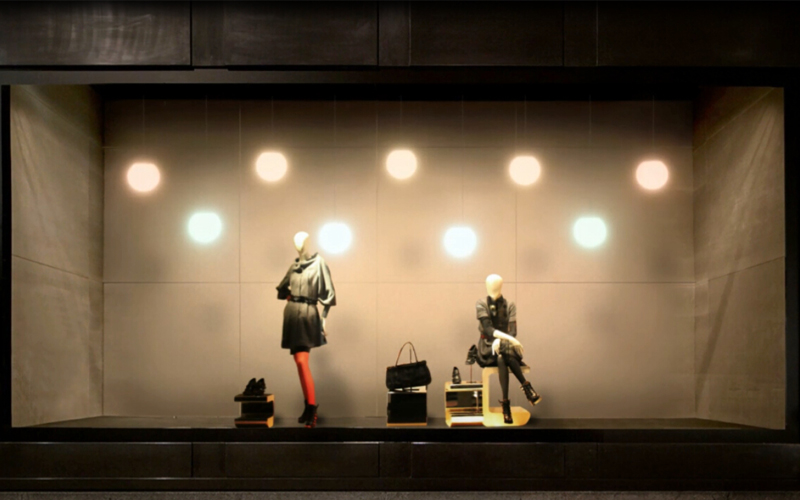

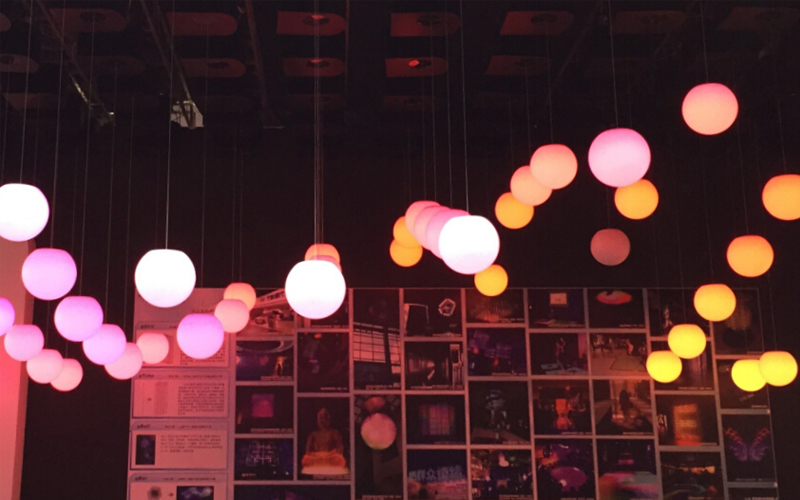

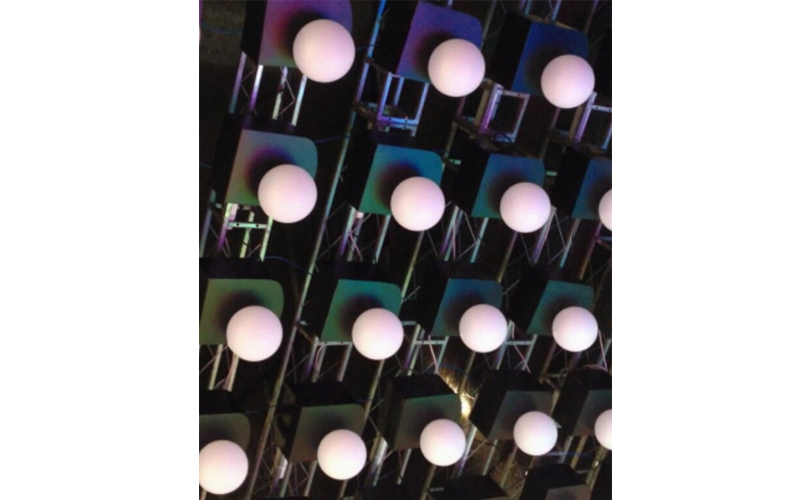

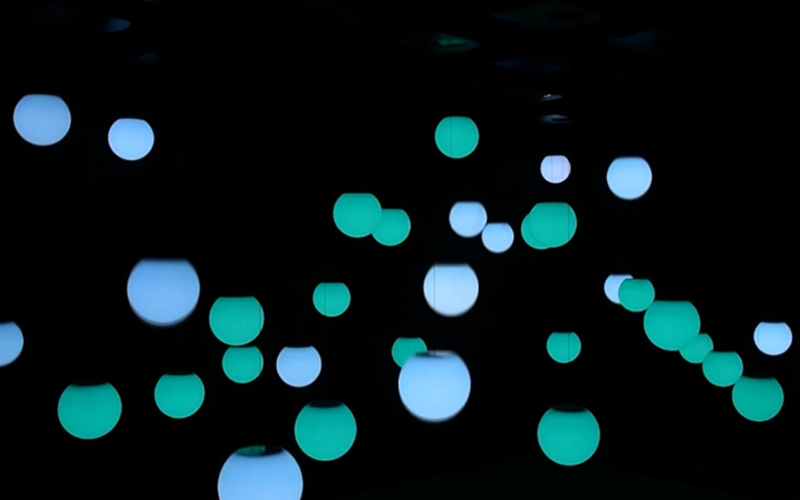

5. It can be used in airport, hotel or some huge architecture.
Item: FX-3DQ-002
Working voltage: AC100-240V
Power: About 40W
Size: Φ20cm/Ball
Kinetic distance:< 2M
Max speed: 0.5 meter per second
LED Qty: 16 pcs per ball
Wireless control distance: < 25M
Standard capacity battery
1.Battery capacity：2000 mah
Charging time: 4H
Discharge time：5H（Gradually changing effect）

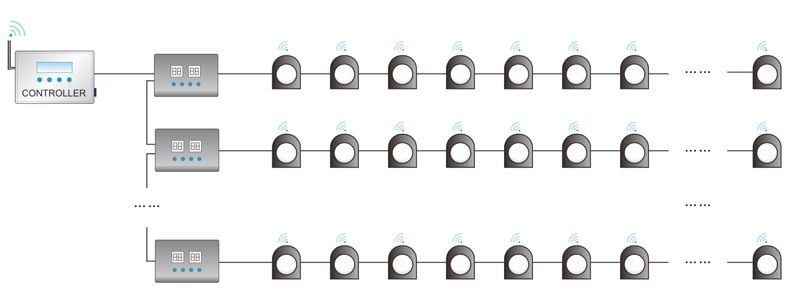

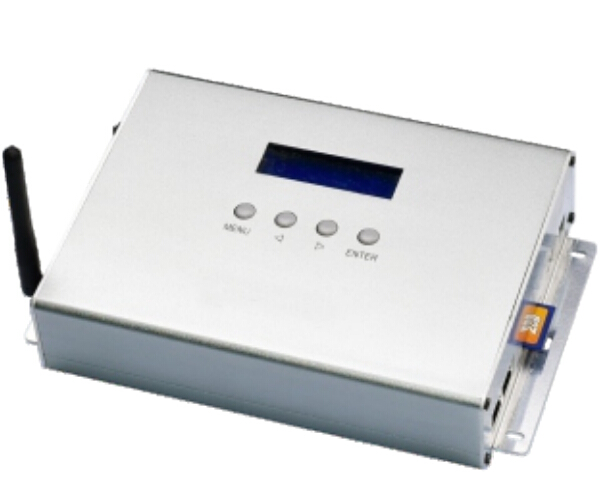

Wireless Master Controller
|
Size |
190L×140W×45H mm |
|
Remote control distance |
30m( Without obstacle) |
|
Wireless frequency |
2.4GHz |
|
Output port |
RJ45×1 |
|
Max power |
3W |
|
Working temperature |
-15℃～60℃ |
|
SD Card |
4G |
|
Cover color |
Silver |
|
Working voltage |
DC7.5V |
|
Power plug |
Power adapter |
|
Capacity |
16 pcs Sub Controller |
|
Function |
Change the display effect of the LED ball wirelessly. Send the moving style and speed to the LED ball from the repeater by network cable |

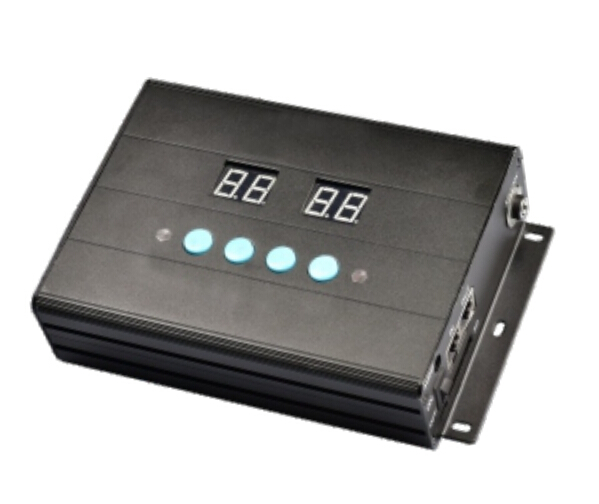

Sub Controller
|
Size |
165L×120W×40H mm |
|
Output channel |
1 channels |
|
Output signal |
RS-485 |
|
Output port |
Signal terminal |
|
Max power |
3W |
|
Working temperature |
-15℃～60℃ |
|
Cover color |
Black |
|
Working voltage |
AC110V/220V |
|
Power plug |
By customer’s request |
|
Capacity |
16pcs LED Ball |
|
Function |
Process the motion command of the main-controller and control the stepper motor on the top tray |
