Design Characteristic

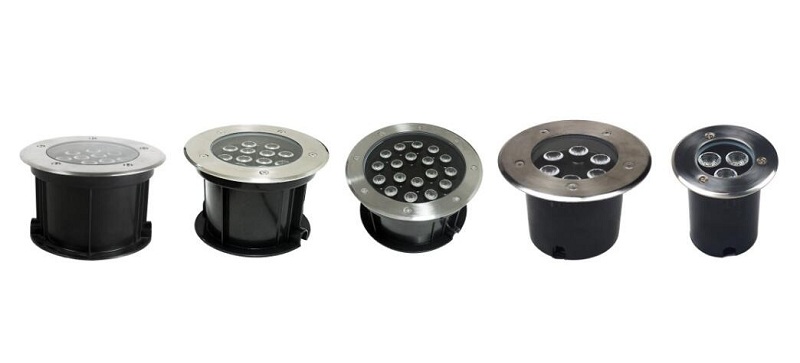

This led ground lamp is designing base on ground assist illumination.The lamp is made by die-casting aluminum with stainless steel panel and tempered glass,good weight capacity. Waterproof structure,dampproof and dustproof.The lamp with embedded part are easy for installation and maintenance
Features：
Wide working voltage range: DC12V-DC24V, Save 40% power with more efficient. DC to DC power management design
Scope:

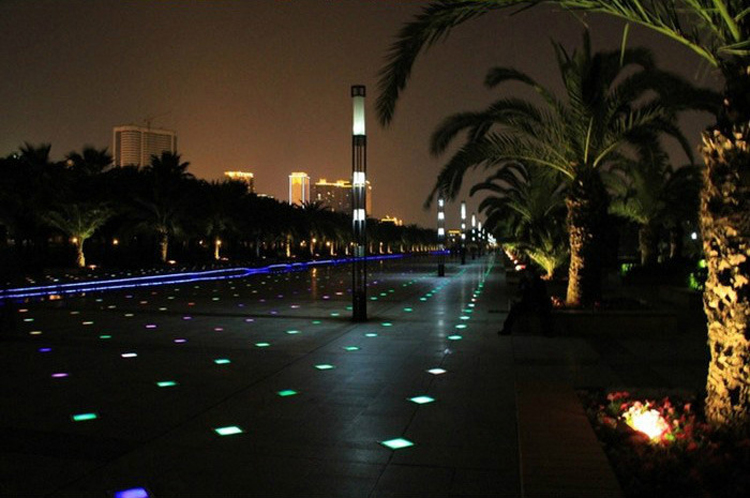

Shopping plaza,exhibition center, parking lot, stadium, tennis playground, gymnasia, billboard, statue, lighting engineering project,etc.
Specifications
|

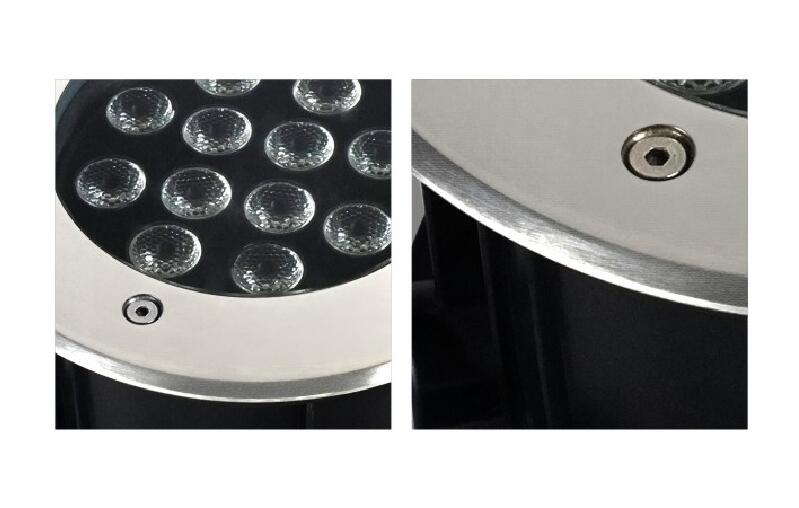

Die casting lamp body, stainless steel frame, tempering glass, embedded part. |
|||||
| Led Brand：Cree/Epistar | |||||
| Single Led Power：1W | |||||
| Input Voltage：DC24V | |||||
| Color：Single Color | |||||
| IP Grade：IP67 | |||||
| Working Temperature：-25℃ - +45℃ | |||||
| Lifespan：20000H | |||||
| Model | Size | Voltage | Power | Color |
LED QTY |
| FTFX-DMD-004 | θ90*90mm | DC24V | 3W | White | 3pcs |
| FTFX-DMD-005 | θ150*H90mm | 6W | 6pcs | ||
| FTFX-DMD-006 | θ180*H120mm | 9W | 9pcs | ||
| FTFX-DMD-007 | θ180*H120mm | 12W | 12pcs | ||
| FTFX-DMD-008 | θ200*H120mm | 18W | 18pcs | ||
| FTFX-DMD-009 | θ220*H120mm | 24W | 24pcs | ||
| FTFX-DMD-010 | θ250*H120mm | 36W | 36pcs | ||
